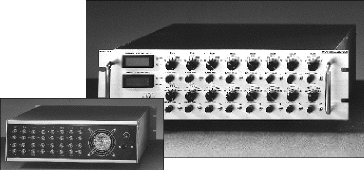

SIGNAL CONDITIONER SYSTEMS
Multi-Function
Filter Instruments
Model 4000 Series
Simultaneous data acquisition can be achieved by our low cost, easy to
operate 16 channel signal conditioner. The conditioner requires no software
programming and interface. |
 |
Features include:
- SUPPORT UP TO 16 CHANNEL FILTER
Available in single, dual,
8 & 16 channel systems
- MODULAR DESIGN
Main frame & 8 plug-in filter cards
- ANALOG ACTIVE FILTER
RC active filter.
Non switch-capacitor filter.
- COMPLETELY ASSEMBLED
Fully finished plug-in card ready to use.
- FREQUENCY RANGE
10 mHz to 20 kHz & 100 mHz to 200kHz. 3-1/2 DIGIT LCD DISPLAY
Multiplexed display of -3 dB frequency
of each channel.
- 4 STANDARD RESPONSES:
Butterworth, Bessel, Chebyshev & Elliptic.
|
- SUPPORT ALL FILTER FUNCTION
Lowpass, Highpass,
Bandpass & Band-Reject
- STABLE OUTPUT
Unity gain output
Amplification available.
- IDEAL FUNCTION BLOCK
High input impedance
Low output impedance.
- COMPENSATED DC OFFSET
Internal DC offset < 2mV.
External adjustable to 0.0.
- BUILD-IN DECOUPLING
Internal power supply decoupling.
- 19" STD RACK MOUNTABLE CASE
19" W x 18" D x 5-1/2" H
|
Specifications
| P/N |
FREQ. RANGE |
RESPONSE |
ROLL-OFF |
| 4114 |
10MHz - 20kHz< $3,950 > |
Bessel |
25 dB @ 3Fc |
| 4118 |
10mHz - 20kHz< $4,950 > |
Bessel |
60 dB @ 4.5Fc |
| 4124 |
10mHz - 20kHz< $3,550 > |
Butterworth |
24 dB / OCT. |
| 4128 |
10mHz - 20kHz< $4,550 > |
Butterworth |
48 dB / OCT. |
| 4134 |
10mHz - 20kHz< $3,950 > |
Chebyshev |
30 dB @ 2Fc |
| 4138 |
10mHz - 20kHz< $4,950 > |
Chebyshev |
70 dB @ 2Fc |
| 4144 |
10mHz - 20kHz< $3,950 > |
Elliptic |
60 dB @ 2Fc |
| 4148 |
10mHz - 20kHz< $4,950 > |
Elliptic |
80 dB @ 1.3Fc |
| 4214 |
0.1Hz - 200kHz< $3,950> |
Bessel |
25 dB @ 3 Fc |
| 4218 |
0.1Hz - 200kHz< $4,950> |
Bessel |
60 dB @ 4.5Fc |
| 4224 |
0.1Hz - 200kHz< $3,550> |
Butterworth |
24 dB / OCT. |
| 4228 |
0.1Hz - 200kHz< $4,550> |
Butterworth |
48 dB / OCT. |
| 4234 |
0.1Hz - 200kHz< $3,950> |
Chebyshev |
30 dB @ 2Fc |
| 4238 |
0.1Hz - 200kHz< $4,950> |
Chebyshev |
70 dB @ 2Fc |
| 4244 |
0.1Hz - 200kHz< $3,950> |
Elliptic |
60 dB @ 2Fc |
| 4248 |
0.1Hz - 200kHz< $4,950> |
Elliptic |
80 dB @ 1.3Fc |
|
MAXIMUM RATINGS
| Dynamic Range |
>90dB |
| Internal Noise |
±1 mV. |
| Input Voltage |
±10 V. |
| Output Voltage |
±10 V. |
| Input Impedance |
1 Megaohm (or 50 ohm matched) |
| Output Impedance |
<50 ohm (or 50 ohm matched) |
| Channel Crosstalk |
>60 dB |
| DC Offset |
<0.5 mV |
|
|
