MINIATURE FILTERS

Fixed Analog Active Filters

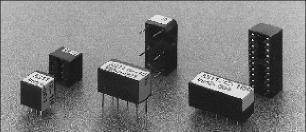

Anti-Aliasing - AS Series

Valuable board space can now be saved by AS series miniature filter module. User is able to maximize system bandwidth, minimize sampling rate and still obtain anti-aliasing attenuation greater than 80 dB at 2 times of the cut-off in a 16 pin DIP package.

Features include:
  • CUSTOMER SPECIFIED FREQUENCY
    Your choice of -3 dB Frequency.
    Customer modifications available at
    No additional charge.
  • EXTREMELY SMALL.
    0.45" L x 0.47" W x 0.40" H (8 pins)
    0.85" L x 0.47" W x 0.40" H (16 pins)
    1.05" L x 0.47" W x 0.40" H (20 pins)
  • ANALOG ACTIVE FILTER
    RC active filter.
    Not switch ­ capacitor filter.
  • COMPLETELY ASSEMBLED
    Fully finished module.
    No external component required.
  • IDEAL FUNCTION BLOCK
    Low output impedance
    High input impedance.
  • STANDARD RESPONSES
    Butterworth, Bessel, Chebyshev.
  • STABLE OUTPUT
    Unity gain output
    Amplification available. (Up to 1000 times).
  • COMPENSATED DC OFFSET
    Internal DC offset <2 mV.
    External adjustable to 0.0.
  • BUILT-IN DECOUPLING
    Internal power supply decoupling.
  • SINGLE /DUAL POWER SUPPLY
    Single Supply: 15.0 V & GND.
    Dual Supply: ± 15.0 V & GND.
  • LOW POWER CONSUMPTION
    1 mA of supply current per unit.

    • Suggested Applications

    APPLICATIONS

    • Anti-aliasing Filter
    • A/D Pre-Filter
    • Smoothing Filter Integrator
    • D/A Post Filter
    • Band-limit Amplifier
    • Sub-Sonic
    ABSOLUTE MAXIMUM RATING
    Supply Voltage ± 15 V to ± 5 V
    Input Voltage ± 12 V
    Output Swing ± 12 V (2k load)
    Dynamic Range > 90 dB
    Operating Temp.

    commercial

    		 0° C to 070° C

    industrial

    		 - 25° C to 085° C

    military

    		 - 55° C to 125° C
    Storage Temp. - 65° C to 150° C

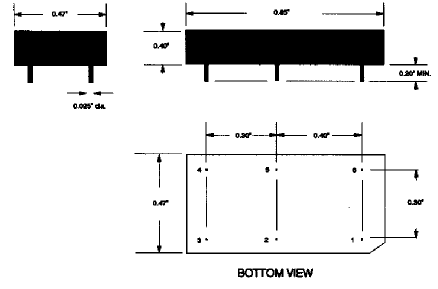

    Case Style & Outline Dimensions






    TYPICAL MODELS
    PIN ROLL-OFF PRICE TYPE* PACKAGE
    AS1112 12 dB @ 2Fc $29 LP 8 pins DIP
    AS1113 18 dB @ 2Fc $35 LP 8 pins DIP
    AS1114 24 dB @ 2Fc $39 LP 8 pins DIP
    AS1115 30 dB @ 2Fc $49 LP 16 pins DIP
    AS1116 36 dB @ 2Fc $59 LP 16 pins DIP
    AS1117 42 dB @ 2Fc $65 LP 16 pins DIP
    AS1118 48 dB @ 2Fc $79 LP 16 pins DIP
    AS1119 54 dB @ 2Fc $85 LP 20 pins DIP
    AS11110 60 dB @ 2Fc $89 LP 20 pins DIP
    AS11111 66 dB @ 2Fc $95 LP 20 pins DIP
    AS11112 72 dB @ 2Fc $109 LP 20 pins DIP
    AS1102 15 dB @ 3Fc $29 LP 8 pins DIP
    AS1103 21 dB @ 3Fc $35 LP 8 pins DIP
    AS1104 23 dB @ 3Fc $39 LP 8 pins DIP
    AS1105 26 dB @ 3Fc $45 LP 16 pins DIP
    AS1106 30 dB @ 3Fc $49 LP 16 pins DIP
    AS1108 51 dB @ 4Fc $79 LP 16 pins DIP
    AS11010 58 dB @ 4Fc $89 LP 20 pins DIP
    AS11012 62 dB @ 4Fc $109 LP 20 pins DIP
    AS1122 13 dB @ 2Fc $29 LP 8 pins DIP
    AS1123 22 dB @ 2Fc $35 LP 8 pins DIP
    AS1124 30 dB @ 2Fc $39 LP 8 pins DIP
    AS1125 40 dB @ 2Fc $49 LP 16 pins DIP
    AS1126 50 dB @ 2Fc $59 LP 16 pins DIP
    AS1128 72 dB @ 2Fc $79 LP 16 pins DIP
    AS11210 65 dB @ 1.5Fc $89 LP 20 pins DIP
    AS11212 75 dB @ 1.5Fc $109 LP 20 pins DIP
    AS2114 24 dB @ 0.5Fc $49 HP 16 pins DIP
    AS2116 36 dB @ 0.5Fc $69 HP 16 pins DIP
    AS2118 48 dB @ 0.5Fc $99 HP 16 pins DIP
    NOTE:
    **FILTER TYPES: LP = Lowpass, HP = Highpass
    **RESPONSE SHAPE: B = Butterworth, L = Bessel, C = Chebyshev


    Specifications
    ELECTRICAL CHARACTERISTICS
    (Supply = ±15V., Load = 10 k‡, Temp. = 25° C)
    Supply Current 10 mA
    Input Impedance > 500 kohm
    Output Impedance < 1 ohm (@ DC)
    Cut-off Variation ± 2%
    Frequency Stability 0.01 % /°C
    Unity Gain Output 0.0 dB
    Max. Input Voltage ± 12 V.
    Max. Output Voltage ± 12 V.
    DC Offset < ± 2mV
    MECHANICAL CHARACTERISTICS
    Dimensions 0.45" x 0.47" x 0.40" (8 pins)
    0.85" x 0.47" x 0.40" (16 pins)
    1.05" x 0.47" x 0.40" (20 pins)
    Pin Diameter 0.025"
    Materials Glass Filled Thermoplastic Nylon
    Socket Monolithic 16 pin DIP Socket

    OPTIONS
    Suffix Description
    L ­ Low power consumption (20mA)
    I ­ Industrial temp. range (-25° C to 85° C)
    M ­ Military temp. range (-55° C to 125° C)
    A1 ­ 10x amplification


     A2 ­

    		 100x amplification


     A3 ­

    		 1000x amplification


    S­

    		 Single supply (+5 V to + 18 V )


      D ­

    		 Differential Input
