VOLTAGE CONTROL FREQUENCY FILTER

Variable Frequency Filters & Modules

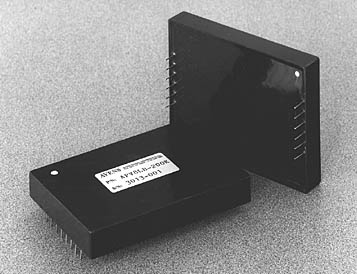

Voltage-Control - APV Series

APV series are best used in recovering or eliminating unknown signal or band of signals by sweeping the cut-off up and down continuously from 0.01 Hz to 100k Hz. It is a basic building block in automation and time sharing signal processing.

Features include:
  • CUSTOMER SPECIFIED PARAMETERS
    Customer defines passband, stopband, roll-off rate, response, & gain.
  • NO SET-UP, NO ENGINEERING CHARGE
    No additional cost besides unit price.
  • HIGH PRECISION
    ± 1% accuracy in -3 dB frequency.
  • ANALOG ACTIVE FILTER
    RC active filter.
    Not switch-capacitor filter.
  • COMPLETELY ASSEMBLED
    Fully Finished module.
    No external component required.
  • FREQUENCY RANGE
    0.01 Hz to 100 kHz
  • 4 STANDARD RESPONSES
    Butterworth, Bessel, Chebyshev, & Elliptic.
  • SUPPORT ALL FILTER FUNCTIONS
    Lowpass, Highpass, Bandpass, & Band-reject.
  • STABLE OUTPUT
    Unity gain output. Amplification available.
  • IDEAL FUNCTION BLOCK
    High input impedance. Low output impedance.
  • COMPENSATED DC OFFSET
    Internal DC offset < 2 mV. External adjustable to 0.0.
  • BUILT-IN DECOUPLING
    Internal power supply decoupling.
  •  < $ 295.00 each >

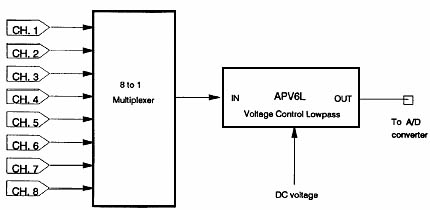

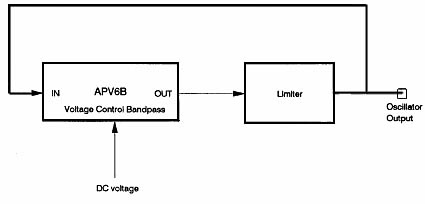

    • Suggested Applications

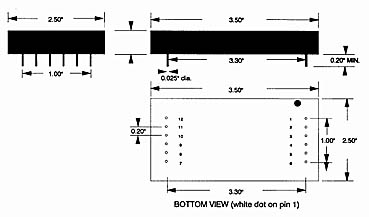

    Case Style & Outline Dimensions


    FREQUENCY SELECTION
    Vc (control voltage)
    A1 A0 01.V. 1.0V. 10.0V.
    0 0 0.1 Hz 1.0 Hz 10 Hz
    0 1 10 Hz 100 Hz 1 kHz
    1 0 1 kHz 10 kHz 100 kHz
    1 1 1 kHz 10 kHz 100 kHz



    PIN ASSIGNMENT

    PIN NO. MODEL: APV
    1 A0*
    2 A1*
    3 Filter Input
    4 Gnd
    5 V+
    6 Vc

    PIN NO. MODEL: APV
    7 Gnd
    8 V-

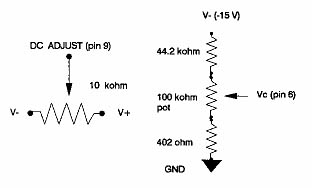

    9 DC Adjust
    10 Filter Output
    11 N/C
    12 N/C

    * A0, A1 are CMOS TTL compatible logic * N/C: No connection

    Specifications
    ELECTRICAL CHARACTERISTICS
    (Supply = ±15V., Load = 10 k‡, Temp. = 25° C)
    Frequency Tuning Limits 0.1 Hz. to 100 KHz.
    Frequency Ratio 1:100
    Frequency Stability 0.01%/°C
    Frequency Accuracy ± 2%
    Poles
    8 (48 dB/octave)also available:

    4 pole 24 dB/octave
    6 pole 36 dB/octave
    Gain ± 0.2 dB, non-inverting
    Control Voltage Range ± 13 volts
    Noise 150 microvolts rms DC-100 KHz.
    Input Impedance > 1 M‡
    Output Impedance less than 1 ohm
    Max. Signal Level ± 10 volts
    Max. Load 2500 ohms
    Power Supply ± 15 volts @ 45 mA
    low power option available
    DC Offset 10 mV, externally to 0 mV
    Operating Temperature 0°C to 60°C
    MECHANICAL CHARACTERISTICS
    Dimensions 3.5" x 2.5" x 0.5"
    Pins 0.025" diameter
    OPTIONS
    Suffix Description
    L ­ Low power consumption (20mA)
    I ­ Industrial temp. range (-25° C to 85° C)
    M ­ Military temp. range (-55° C to 125° C)
    A1 ­ 10x amplification


     A2 ­

    		 100x amplification


     A3 ­

    		 1000x amplification


     D ­

    		 Differential Input
